Line

The Line object is deprecated in version 1.4. Use the new object Path instead. By setting

UI Object that displays a line or a number of conected lines. The source data must be a table with the x and y coodinates of vertices of the line. There must be at least two rows in the table.

Note that this object is different from the Lines object that draw a series of unconnected lines.

the Line object

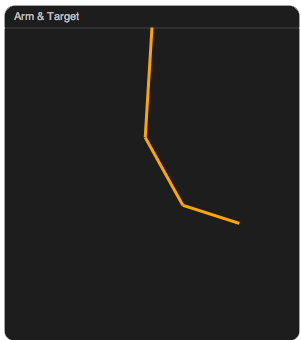

Example Line View

Example XML definition

  <object
    class="Line"
    module="MY_MODULE"
    source="MY_OUTPUT"
    x="0"
    y="0"
  />

Attributes

Attribute Description Default
class must be "Line"
x placement of the object
y placement of the object
w width of the object 1
h height of the object 1
module name of the module to be visualized
source name of the output to be visualized
color color of the Line "yelow"
stroke_width stroke width in pixels 1

Author

Christian Balkenius
Lund University Cognitive Science
christian.balkenius@lucs.lu.se

Files

Line.js
