Table
UI Object that displays a table with the values of a matrix.

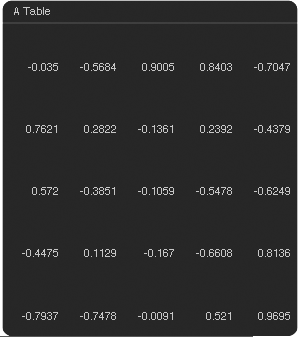

Example Table View
Example XML definition
<object
class="Table"
module="MY_MODULE"
source="MY_OUTPUT"
x="0"
y="0"
/>
Attributes
| Attribute | Description | Default |
|---|---|---|
| class | must be "Table" | |
| title | title of the object | module.source |
| x | placement of the object | |
| y | placement of the object | |
| w | width of the object | 1 |
| h | height of the object | 1 |
| color | stroke color of the numbers or color list | "#BABABA" |
| positive_color | stroke color of the numbers with non-negative values | color |
| negative_color | stroke color of the numbers with negative values | color |
| font_size | size of the numbers | 11px |
| decimals | number of decimals to show | 2 |
| Attributes without default values must be specified except where described above. | ||
Author
Christian Balkenius
Lund University Cognitive Science
christian.balkenius@lucs.lu.se
Files
Table.js
