Scatter Plot
UI Object that displays a scatter plot.

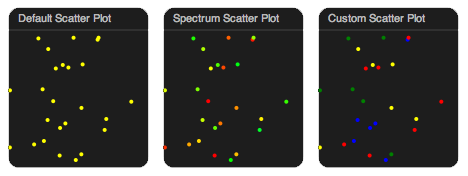

Example Scatter Plot Object
Example XML definition
<object
class="ScatterPlot"
module="MY_MODULE"
source="MY_OUTPUT"
x="0"
y="0"
/>
Attributes
| Attribute | Description | Default |
|---|---|---|
| class | must be "ScatterPlot" | |
| x | placement of the object | |
| y | placement of the object | |
| w | width of the object | 1 |
| h | height of the object | 1 |
| module | name of the module to be visualized | |
| source | name of the output to be visualized | |
| title | title of the object | module.source |
| min | minimum value for x and y | 0 |
| max | maximum value for x and y | 1 |
| min_x | minimum value for x | min |
| max_x | maximum value for x | max |
| min_y | minimum value for y | min |
| max_y | maximum value for y | max |
| flip_y_axis | place the origin at the lower left corner (rather than at the top left) | |
| color | color(s) of the points | "yellow" |
| Attributes without default values must be specified except where described above. | ||
Author
Martin Butz
Institut für Psychologie der Universität Würzburg
Files
ScatterPlot.js
