Label
This object will be included in Ikaros version 1.3.1.
value_x, y etc will be replaced by selection vector.
UI Object that displays one or several labels. This object is typically used as an overlay for an image.
If no data source is specified, a single label will be drawn in the center of the frame. If a data source is defined it will be used to set the center of one or several labels. The positions must be between 0 and 1 unless min and max are specified.
A number of different types of labels are available:
- labels: this type takes the labels from a comma separated list of strings in the variable text.
- alphabetical: the labels are automatically generated as A, B, C....
- numbered: the labels are automatically generated as 0, 1, 2, 3....
- x_value: the labels are taken from the x-coordinate of the input.
- y_value: the labels are taken from the y-coordinate of the input.
- z_value: the labels are taken from the z-coordinate of the input.
- xy_value: the labels are taken from the x- and y-coordinate of the input.
- value: the labels are taken from the column of the input set by the select attribute.
The different labels can be given different colors by specifying a list of colors or a color table for the color attribute.
The text and position of the labels can be controlled using the parameters offset_x and offset_y that shifts the label away from the center. The text can be draw left, right or center-justified by setting the text_anchor parameter. The text size can be set using the size parameter. When the labels show a value, the number of decimals to use are set by the decimals-parameter.

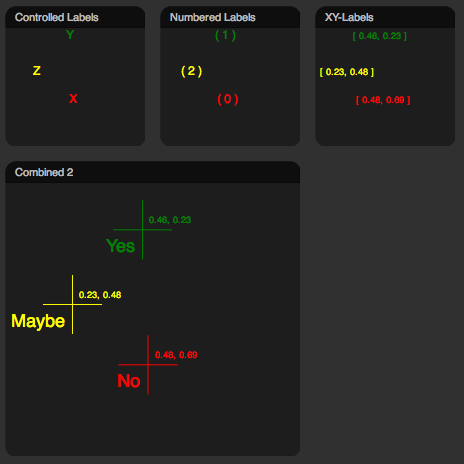

Example Label Objects. Top Left. Labels from the list "X,Y,Z". Top Middle. Labels or type numbered with prefix "(" and postfix ")". Top Right. Labels of type xy_value with prefix and postfix brakets. Bottom. Combination of one cross object and two label objects, the first of which uses a list "Yes,No,Maybe" together with text_anchor at end and an offset from the center. The seonc label object consists of coordinates (xy_value) at an offset.
Example XML definition
<object
class="Label"
module = "MY_MODULE"
source = "MY_OUTPUT"
type = "xy_value"
size = "12"
color = "red, green, blue"
x="0"
y="0"
/>
Attributes
| Attribute | Description | Default |
|---|---|---|
| class | must be "Label" | |
| title | title of the object | module.source |
| x | placement of the object | |
| y | placement of the object | |
| w | width of the object | 1 |
| h | height of the object | 1 |
| module | name of the module to be visualized, if any | |
| source | name of the output to be visualized, if any | |
| type | type of label (labels, alphabetical, numbered, x_value, y_value, z_value, xy_value, value) | "labels" |
| select | column to get data from | |
| text | comma separated list of labels | |
| color | color of the Label(s) or list of colors | "yelow" |
| size | font size | 12 |
| text_anchor | text anchor position (start, middle, end) | "middle" |
| offset_x | offset from center to text anchor | 0 |
| offset_y | offset from center to text anchor | 0 |
| prefix | string to put before label | |
| postfix | string to put after label | |
| min | minimum value for x and y dimensions | 0 |
| max | maximum value for x and y dimensions | 1 |
| min_x | minimum value for x dimensions | min |
| max_x | maximum value for x dimensions | max |
| min_y | minimum value for y dimensions | min |
| max_y | maximum value for y dimensions | max |
| flip_y_axis | invert coordinate system | no |
Author
Christian Balkenius
Lund University Cognitive Science
christian.balkenius@lucs.lu.se
Files
Label.js
